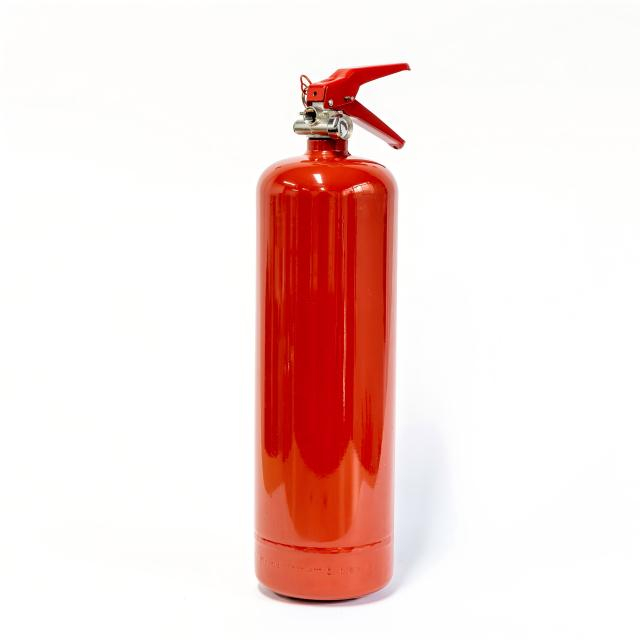

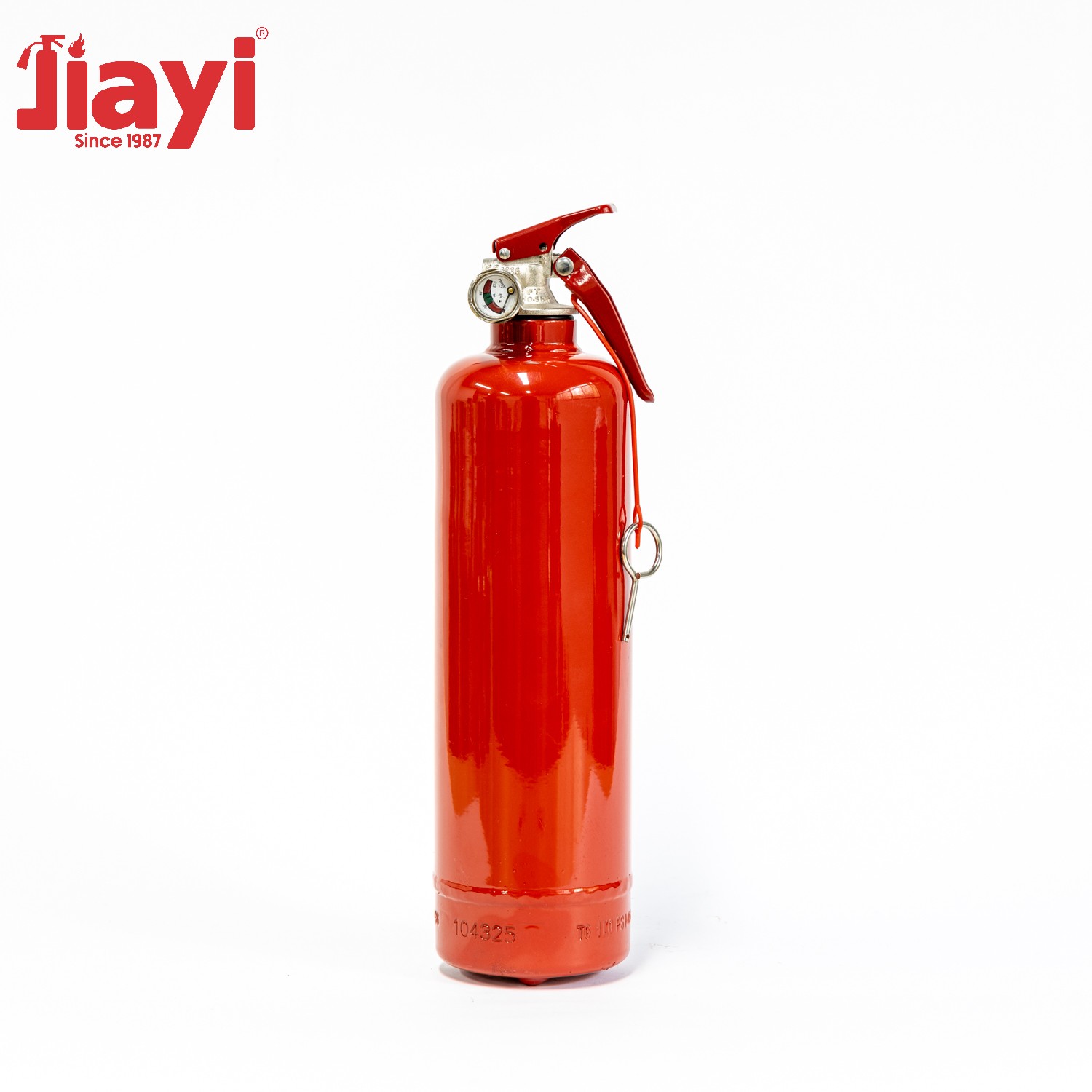

2kg ABC Penghancur api serbuk kering
Specifaction:
Out -Diamteter: 110mm
Jumlah: 2.5L
Panjang silinder: 300mm
Pemadam Berat: 5.1kg
Pengisian Berat: 3.3kg
Suhu Julat: -30 OC -60 OC
Max Tekanan Kerja: 16Bar
Tekanan Ujian: 29Bar
min Wall ketebalan: 1.07mm
Meteral: DCO1;
Kadar Kebakaran: 8A34BC:

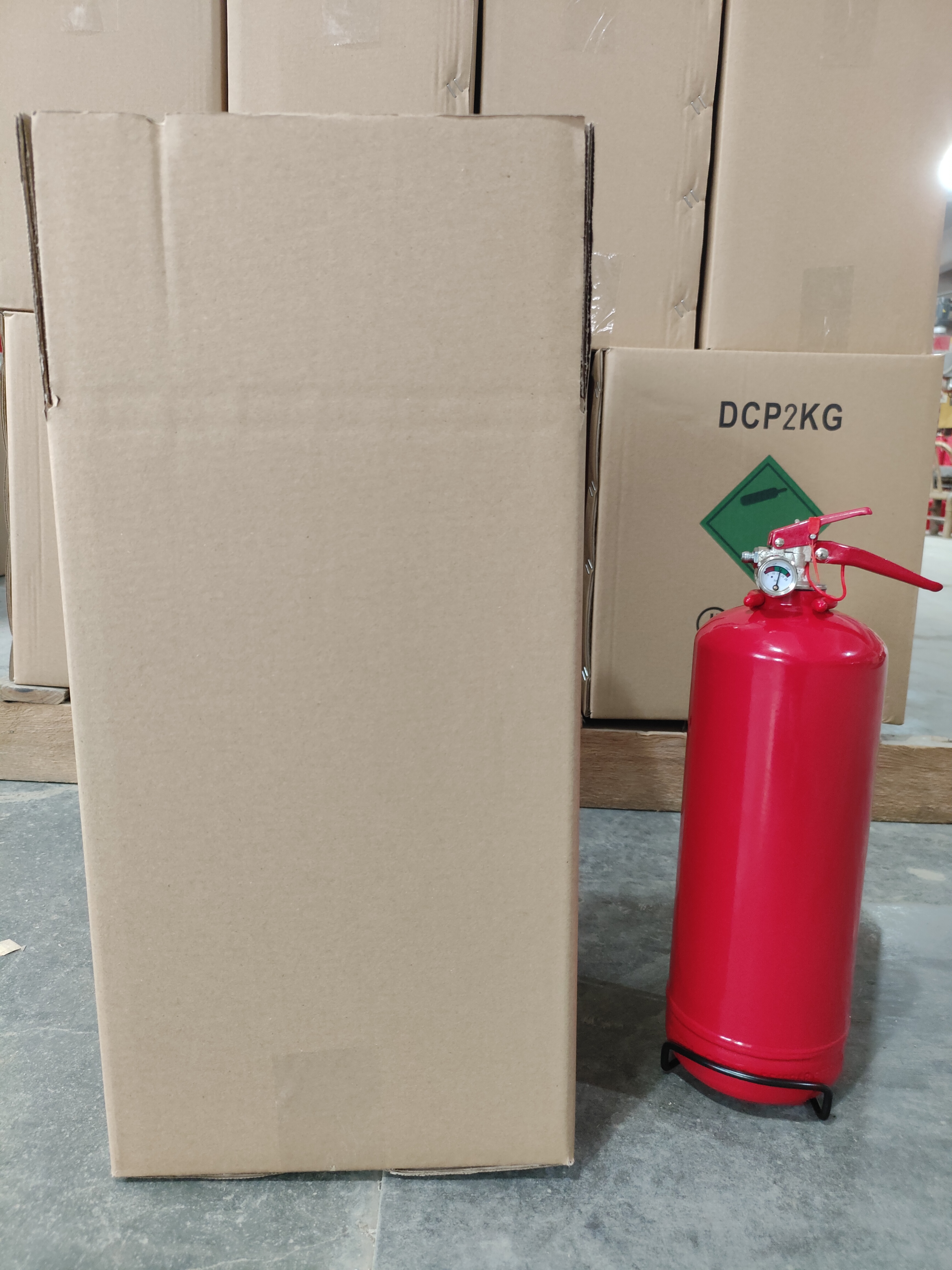

Saiz Pembungkusan: 24.5*24.5*40cm/4pcs
Standard: ISO
Kapasiti | 1kg | 2kg | 3kg | 4kg | 5kg | 6kg | 8kg | 9kg | 12kg | |
Perkara no | XJ03-01 | XJ03-02 | XJ03-03 | XJ03-04 | XJ03-05 | XJ03-06 | XJ03-08 | XJ03-09 | XJ03-10 | |
Ejen | Serbuk 40% | Serbuk 40% | Serbuk 40% | Serbuk 40% | Serbuk 40% | Serbuk 40% | Serbuk 40% | Serbuk 40% | Serbuk 40% | |
Out-Diamter (mm) | 90/80 | 110 | 130 | 130 | 140 | 150 | 163 | 180 | 180 | |
Ketinggian silinder (mm) | 240/265 | 300 | 330 | 415 | 435 | 480 | 495 | 490 | 630 | |
VOLUME (L) | 1.25 | 2.5 | 3.6 | 4.7 | 6.2 | 7.0 | 9.4 | 10.6 | 14.6 | |
Berat penuh (kg) | 1.7 | 3.3 | 4.9 | 6.3 | 7.7 | 9.0 | 11.5 | 12.7 | 16.6 | |
Julat suhu (° C) | -20 ° C ~+55 ° C. | -20 ° C ~+55 ° C. | -20 ° C ~+55 ° C. | -20 ° C ~+55 ° C. | -20 ° C ~+55 ° C. | -20 ° C ~+55 ° C. | -20 ° C ~+55 ° C. | -20 ° C ~+55 ° C. | -20 ° C ~+55 ° C. | |
Tekanan kerja maks (bar) | 18BAR | 18BAR | 18BAR | 18BAR | 18BAR | 18BAR | 18BAR | 18BAR | 18BAR | |
Masa pelepasan (sec) | 6 | 6 | 9 | 9 | 9 | 9 | 9 | 9 | 12 | |
Ranger Tanggalkan (M) | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4 | 4.5 | 4.5 | |
Ketebalan dinding min (mm) | 0.79/0.72 | 1.07 | 1.13 | 1.13 | 1.16 | 1.2 | 1.24 | 1.3 | 1.3 | |
Bahan | DC01 | DC01 | DC01 | DC01 | DC01 | DC01 | DC01 | DC01 | DC01 | |
Kadar kebakaran | 5A21B | 8a34b | 13A55B | 13A55B | 13A55B | 21A113B | 34A183B | 34A183B | 34A183B | |
Saiz pembungkusan (mm) | 49x20.5x33 | 24.5x24.5x40 | 28.5x15x43 | 28.5x15.51 | 30.5x16x53.5 | 32.5x15x58 | 17.5x17.5x58.5 | 19x19x59 | 19x19x72.5 | |
Kuantiti/kadbod (PCS) | 10 | 4 | 2 | 2 | 2 | 2 | 1 | 1 | ||
Kami sedang mencari agensi menjual kawasan untuk menjual produk kami.Jika anda berminat sila hubungi kami.
